What's in this package
Everything shown here ships as part of this package. Select a piece to see its description, specs and manuals.
Description

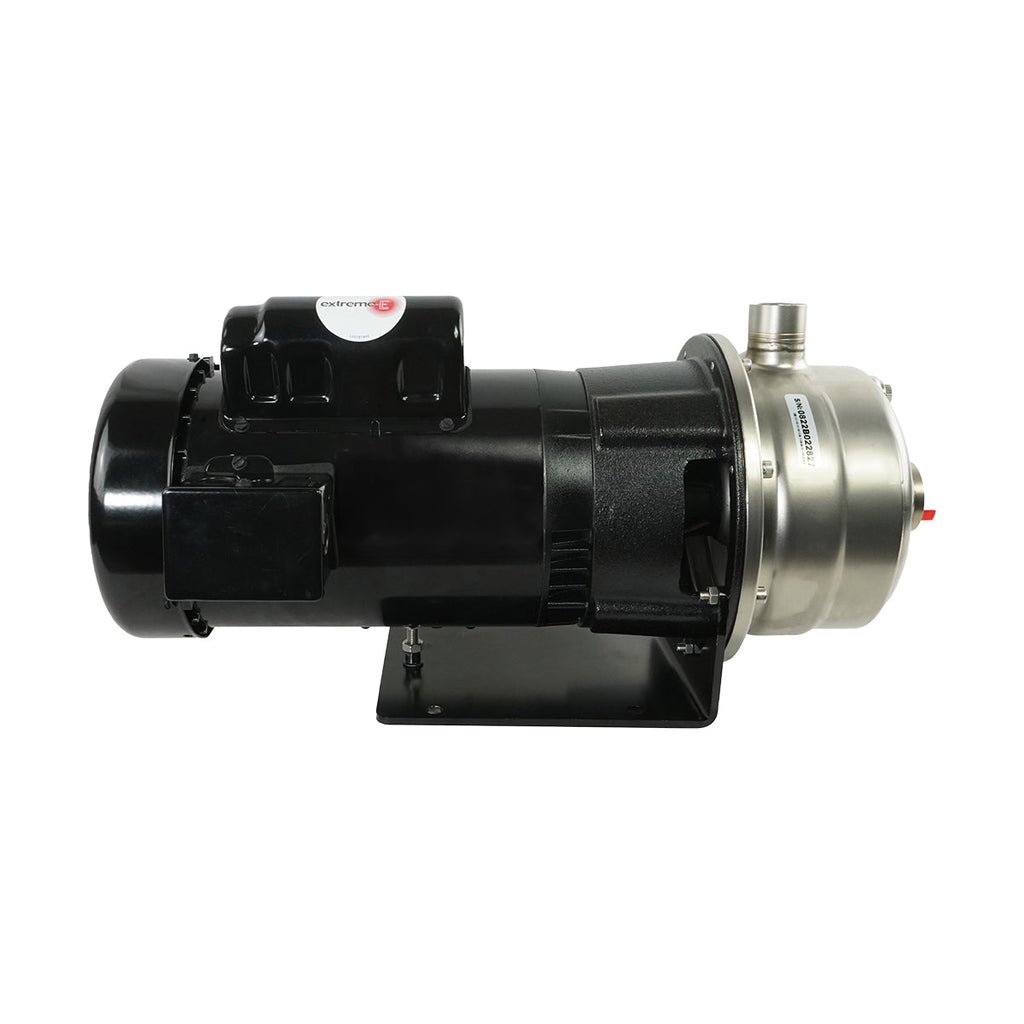

The Crystal Quest Centrifugal 2-Stage Pump is a close-coupled 3 HP pump rated at 50 GPM nominal flow, with up to 65 GPM and up to 107 PSI. It is built for reverse osmosis, deionized water, circulation and transfer systems in commercial, industrial and agricultural settings.
Highlights
- Two-stage design builds pressure for RO and DI system feeds
- Close-coupled layout keeps the pump and motor compact at about 14.9 x 8.1 x 9.0 in
- 304 stainless steel construction for water treatment use
- 3 HP, 3500 RPM motor on 3 phase, 60 Hz power
- Threaded 1-1/4 in suction and 1-1/2 in discharge connections
Details
Avermont Direct is an authorized Crystal Quest dealer. This pump is intended for commercial and industrial water systems and should be installed by a qualified technician following local electrical codes. Avoid throttling the suction side, and lubricate bearings according to the manufacturer's recommendations.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Type | Centrifugal, close-coupled |
| Stages | 2 |
| Nominal Flow Rate | 50 GPM |
| Maximum Flow | Up to 65 GPM |
| Maximum Pressure | Up to 107 PSI |
| Horsepower | 3 HP |
| Motor Speed | 3500 RPM |
| Power | 3 phase, 60 Hz |
| Suction / Discharge | 1-1/4 in NPT-F / 1-1/2 in NPT-F |
| Construction | 304 stainless steel |
| Dimensions (L x W x H) | Approx. 14.9 x 8.1 x 9.0 in |
| Weight | Approx. 35 lb |
- Applications: deionized water, reverse osmosis, distribution and circulation, car washes, cooling towers, pre-filter charge and liquid transfer systems
- Mount on a flat, stable, vibration-free surface; install a check valve and isolation valve on the discharge side
- Fill the casing and vent air before starting; ground the motor per local electrical codes and verify rotation direction
- Requires 3 phase power; confirm motor voltage matches your supply before installation
