Orion HCCA5000.1DSPLX HCCA Competition Class D Monoblock Amplifier 10000 Watts Max

Orion HCCA5000.1DSPLX HCCA Competition Class D Monoblock Amplifier 10000 Watts Max

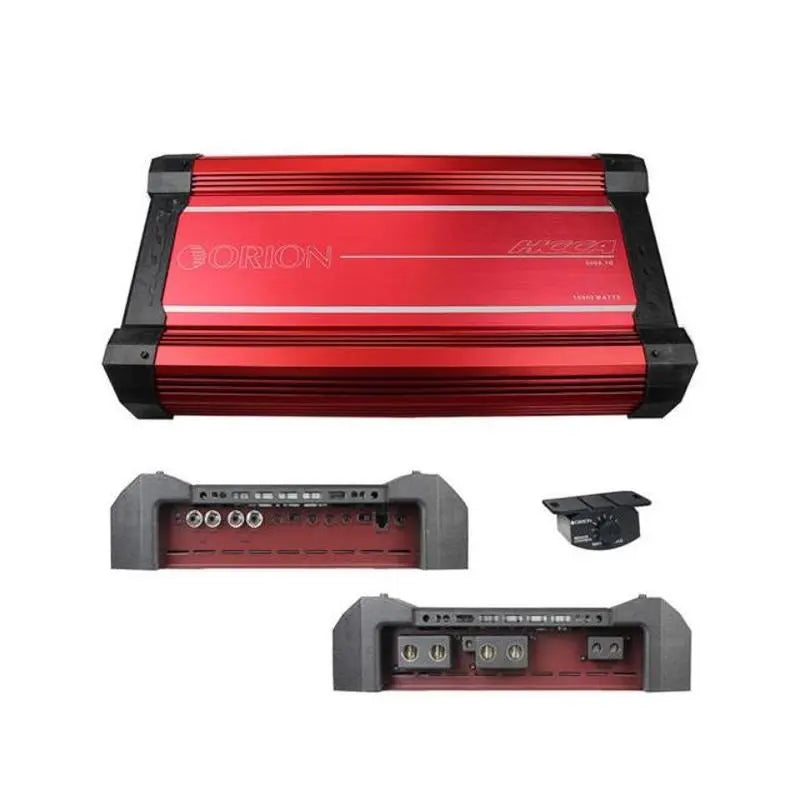

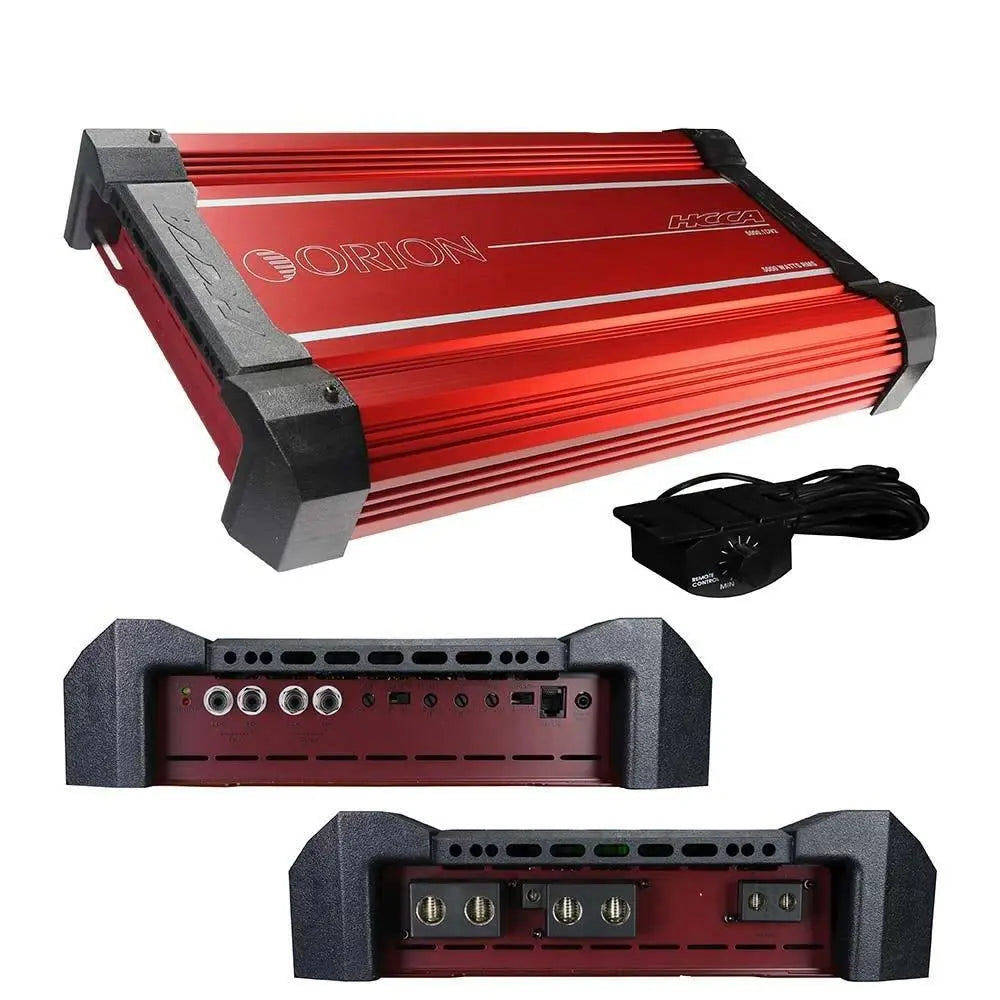

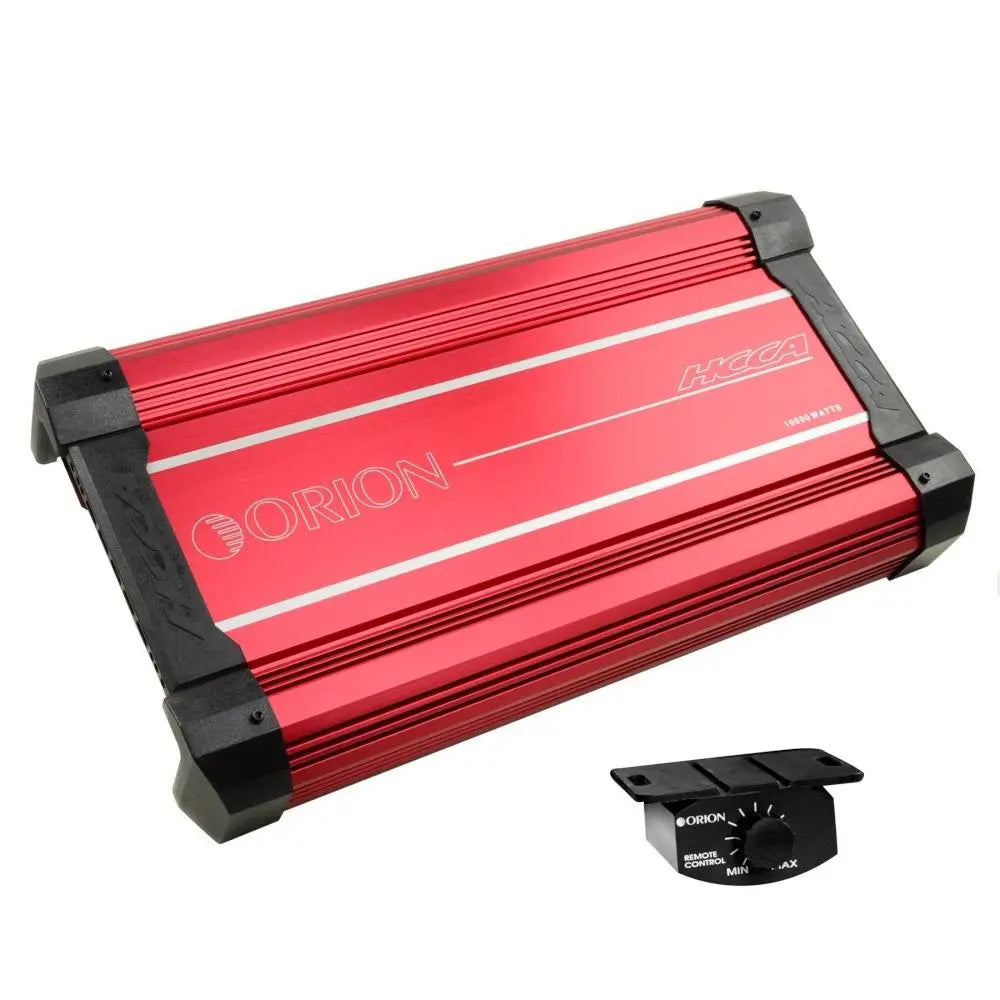

This is Orion's new model of the HCCA5000.1D Monoblock amplifier. This is part of their Competition series. This is a beast of a machine and made for serious audio competitors and enthusiasts. This Mono Channel amplifier is designed and crafted with the best components on the market. Built in a heavy duty rugged die-cast aluminum heatsink with great internal components. This amplifier is sure to get the job done and includes a bass knob.

• RMS Power @ 4 Ohms MONO @ 0.5% THD 2300 Watts

• RMS Power @ 2 Ohms MONO @ 0.5% THD 3600 Watts

• RMS Power @ 1 Ohms MONO @ 0.5% THD 5800 Watts

• 12dB/Octave Low-Pass Filter

• Frequency Response: 20Hz to 250Hz

• Low Pass Crossover: 40Hz~300Hz

• Signal to Noise Ratio: >65dB

• THD at 1 Watt, 4 Ohm: <0.5

All MOSFET Power Supply and Output Stage

• Electronic Crossover Network

• Bass Boost Circuit

• Remote Gain Control

• Low Pass Filter Control

• Power and Protection LED Indicators

• Phase Control 0~180 degree

• Soft Turn-On / Turn-Off

• Balanced Input (CMRR)

• Heavy Gauge Direct-Wire High Current Power and Speaker Terminals

• Length (in/cm): 22.0" / 56.0

• Height (in/cm): 3.0" / 7.7

• Depth (in/cm): 11.8" / 30.2

• Power Output: 2300 Watts RMS x 1 at 4 Ohms and < 1% THD+N

• Signal to Noise Ratio: >70 dBA (reference 1 Watt into 4 Ohms

• Additional Power: 5000 Watts RMS x 1 at 1 ohm and < 1% THD+N
