MRCOOL 10kW Heat Kit with Circuit Breaker for TruInverter series
MRCOOL - Signature Series TruInverter Accessory

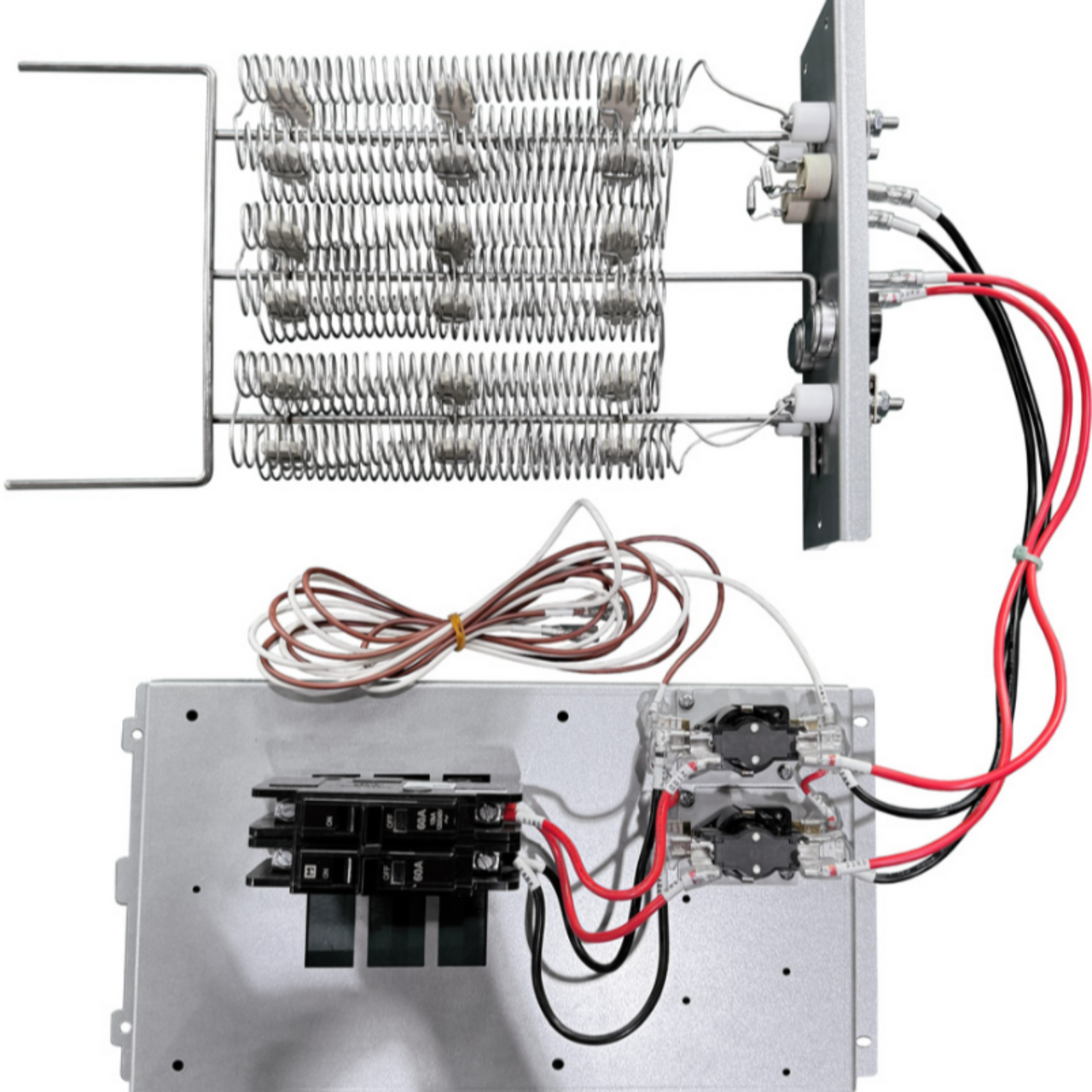

MRCOOL Signature Series 10 kW Heat Kit with Circuit Breaker - MCAEHFD10X1BA
Overview
10 kW
208/230/240V
Single Phase
60 Hz
Circuit Breaker Included
TruInverter Compatible
10kW Heat Kit with Circuit Breaker for TruInverter series. This electric heat kit adds supplemental heat capacity for compatible MRCOOL Signature Series TruInverter air handlers.
Key Specs
Heat Output
10 kW
10 kW
Electrical
208/230V - 1 Phase - 60 Hz
208/230V - 1 Phase - 60 Hz
MCA (230V)
49.9A @230V
49.9A @230V
Max Fuse / Breaker
60A
60A
Electrical Data
| Model | MCAEHFD10X1BA |
| Heat Capacity | 10 kW |
| Staging | Single-stage |
| Min Circuit Ampacity (MCA) | 45.2A @208V - 49.9A @230V - 52A @240V |
| Max Fuse / Breaker (HACR) | 50A @208V - 60A @230V - 60A @240V |
| Supply Voltage | 208/230/240V, 1 Phase, 60Hz |
| Installation Type | Multi-position air handler applications |
Compatible Air Handlers
- MCAEAMPVT24D21BA
- MCAEAMPVT36D21BA
- MCAEAMPVT48F21BA
- MCAEAMPVT60F21BA
Confirm final selection using load calculations and electrical service capacity.
Installation Notes
- Installation and wiring should be completed by qualified personnel.
- Disconnect all power before service or installation.
- Use copper supply conductors and follow local electrical code.
- Verify breaker terminal torque and wiring diagram before startup.
Documents & Downloads
FAQs
Does this include a circuit breaker?
Yes. This heat-kit model includes circuit breaker provisioning for the listed configuration.
Can this be used with any air handler?
Use only with compatible Signature Series TruInverter air handlers listed on this page.
How should I select the correct kW size?
Choose the kW size based on design heating load, equipment compatibility, and available electrical service.
